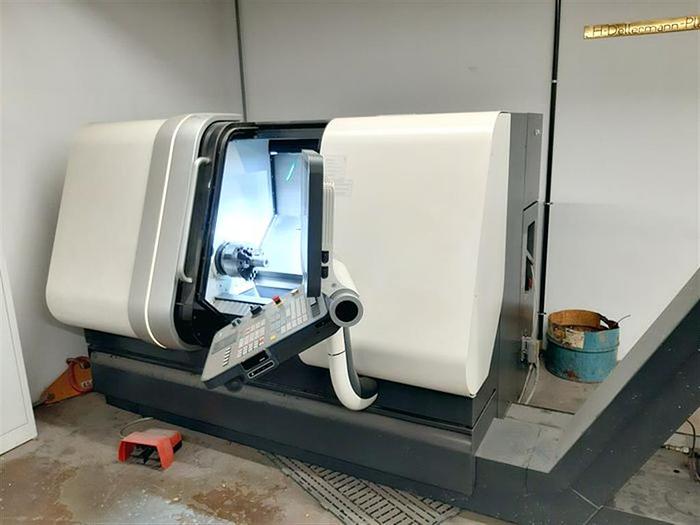

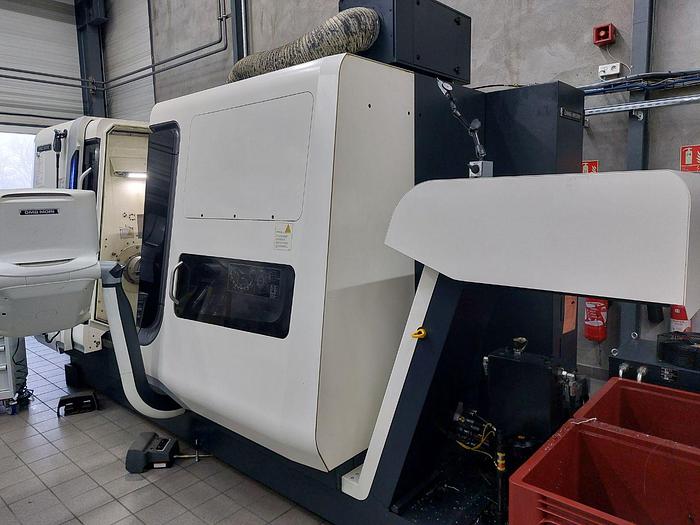

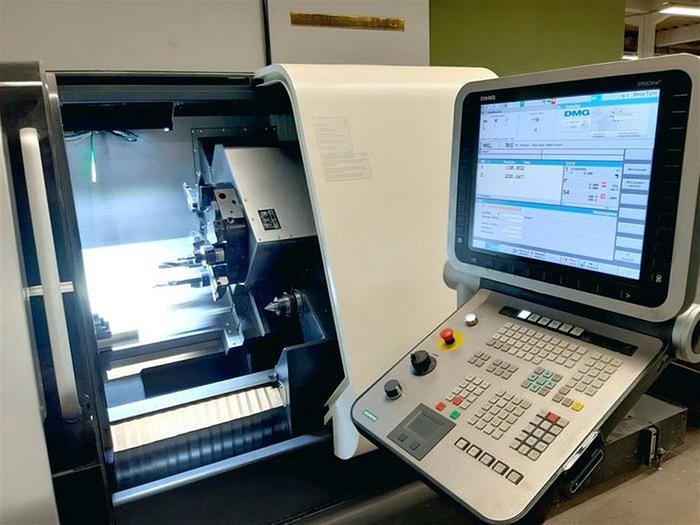

2009 DMG CTX 800 BETA

Machine-Details

Stock-No. 1105-04033

Type of machine CNC Turning- and Milling Center

Make DMG MORI

Type CTX beta 800

Year of manufacture 2009

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin Germany

Delivery time IMMEDIATELY

Freight basis ex site

Technical details

turning diameter max. 390 mm

turning length 800 mm

control Sinumerik 840D sl Siemens

greates pass round over bed 700 mm

turning speed range - main spindle 20 - 4.000 min/-1

power capacity - main spindel 45 / 35 kW

max. Torque 700 Nm

C-Axis 360 °

spindle nose 220h5

chucking diameter - mm

max. bar capacity 102 mm

number of toolpositions 12 pos.

Number of driven toolspositions 12 pos.

power capacity driven tool-stations 14,2 kW

Spindle speed - driven tool stations 40 - 10.000 min -1

tool taper VDI 40 DIN69880

max. Torque 34 Nm

x-axis 290 mm

z-axis 800 mm

rapid traverse X: 30 / Z: 30 m/min

feed power 5,6 / 7,4 kN

quill stroke 300 mm

tension force 6,3 kN

taper of center MK 5

total power requirement - kW

weight of the machine ca. 6.5 t

dimensions of the machine ca. 5.0 x 3,5 x 2,1 m

Accessories

Documents

Chip conveyor

Tool drive mechanisum

Coolantsystem 12 bar

C-axis

hollow chuck unit 104mm

tool setting

Chuck

Tailstock

Additional information

CNC - Turning- and Millingcenter

DMG MORI - CTX beta 800

- Sinumerik Operate und ShopTurn 3G

Spindle ISM 102

TAILTOCK

CHIP CONVOYER
