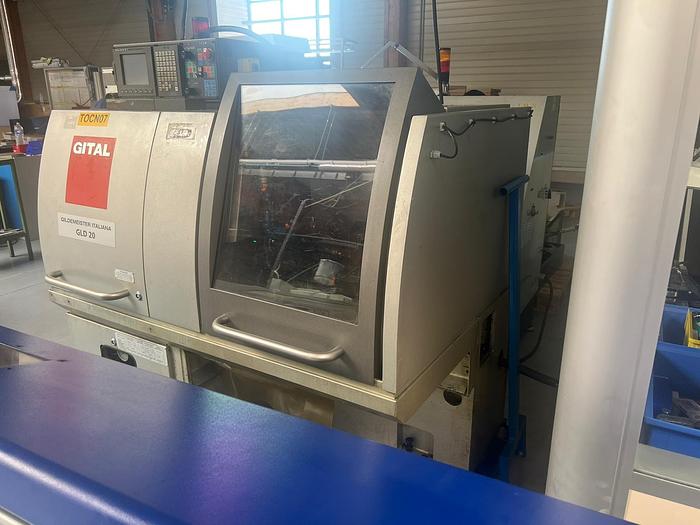

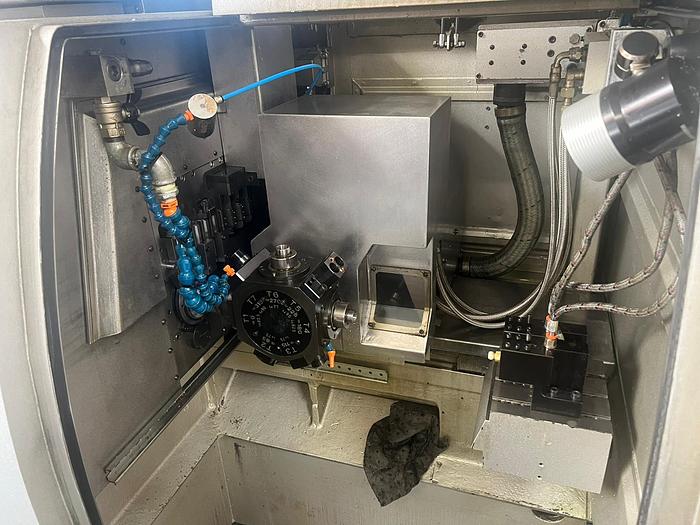

2000 DMG GILDEMEISTER GITAL GLD 20

Machine-Details

Stock-No. 1105-04025

Type of machine CNC Lathe

Make DMG GILDEMEISTER

Type GLD 20

Year of manufacture 2000

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin Germany

Delivery time nach Absprache

Freight basis EXW

Technical details

bar material dia. 20 mm

chuck diameter 100 mm

turning length 180 mm

turning speeds 25-8.000 U/min

positive location each C-Achse, 0,001° Grad

Sub spindle ja/yes

bar material dia. 37 mm

turning speeds 31-6.300 U/min

positive location each C-Achse, 0,001° Grad

turret (x-stations) 2x 6-fach

driven tools 3

control Sinumerik 840 D

Number of working hours 39.752h Einschaltdauer (März 2007)

coolant Emulsion

high-pressure pump ca. 50 bar

total power requirement 28 kW

weight of the machine ca. 6 t

dimensions of the machine ca. 4,8 x 2,2 x 2 (+Irco) m

chip conveyor Bürener Maschinenfabrik

Accessories

tool holder 10 starre, 2 angetriebene Stück / off

parts conveyor

Additional information

1 X GILDEMEISTER GITAL GLD 20

Caracteristics

- Number of axes : 6

- Number of spindles : 2

MAIN SPINDLE

- Max. bar diameter : 20 [mm]

- Travel : 160 [mm]

- Spindle speeds : 8000 [rpm]

- C axis indexing precision : 0.0001 [°] COUNTER-SPINDLE

- Max. bar diameter : 20 [mm]

- Number of turrets : 1

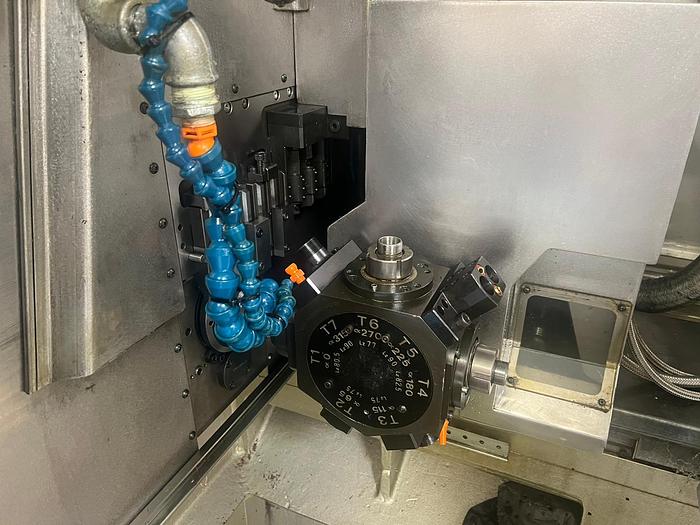

UPPER TURRET

- Number of positions : 7

- Number of motorized positions : 7

- X stroke : 100 [mm]

- Z stroke : 270 [mm]

- Live tools speed : 6000 [rpm]

GUIDE BUSH HOLDER 1

- Number of positions : 8

- Number of motorized positions : 3

- Live tools speed : 6000 [rpm]

- X/Y stroke : 220/30 [mm]

SECONDARY OPERATION

- Number of positions : 3

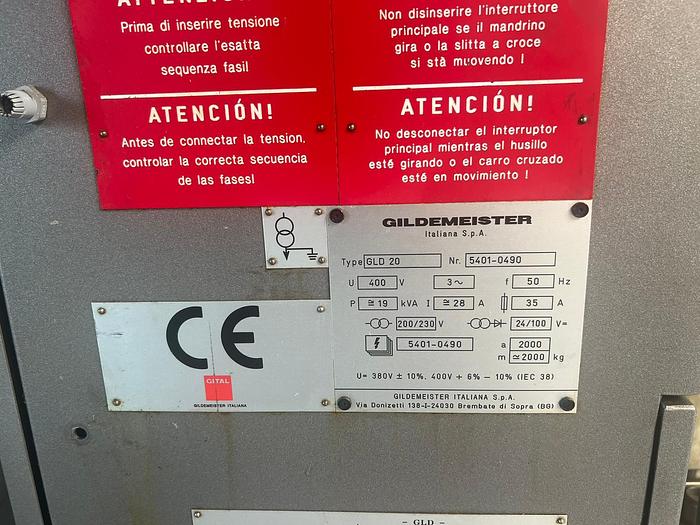

POWER SUPPLY

- Supply voltage : 400 [V]

MACHINE HOURS

- Number of hours under power : 42595 [h]- Number of working hours : 13446 [h]

- Number of spindle hours : 6412 [h]

Equipment

- CNC : Fanuc 21 iT

- Interface : RS232 /

- Rotating guide bush

- Parts catcher

- Coolant tank

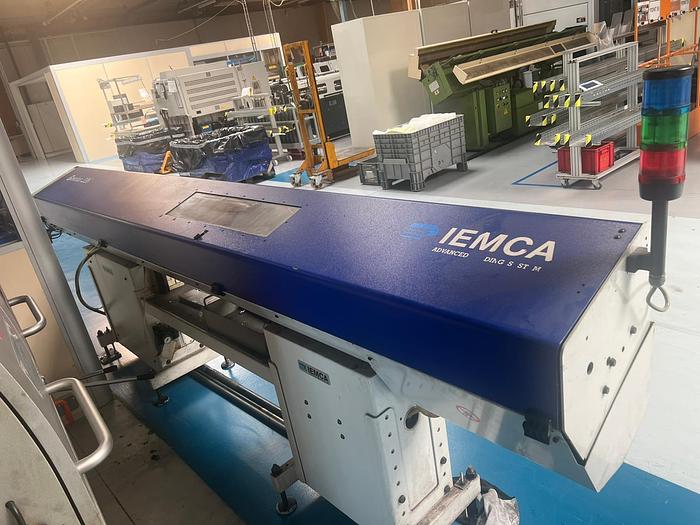

- BAR FEEDER IEMAC GENIUS 25 Number of turning tool holders : 3

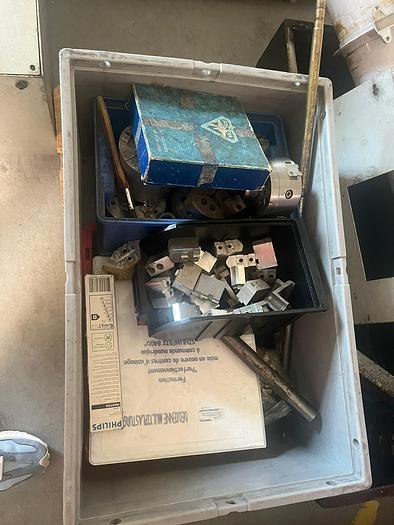

- Collets collection for chuck

- Collets collection for guide bush

PRICE 13000 EUROS
