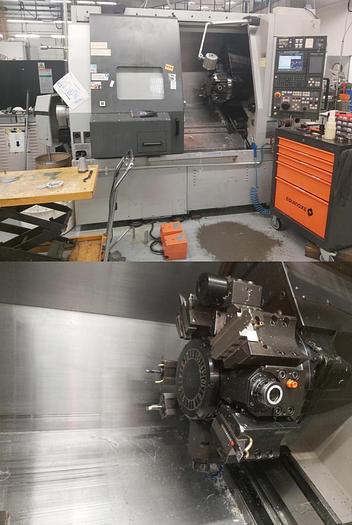

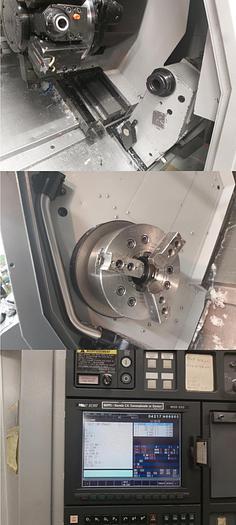

2003 MORI SEIKI SL 2500 Y

Stock-No. 1105-04024

Type of machine CNC Turning- and Milling Center

Make MORI SEIKI

Type SL 2500 Y /650

Year of manufacture 2003

Type of control CNC

Storage location FRANKREICH

Country of origin Japan

Delivery time immediately

Freight basis ex Warehouse

Technical details

turning diameter 490 mm

turning length 650 mm

control MSX-805

max. bar capacity 65 mm

travel -x axis 305 mm

travel -z axis 690 mm

travel -y axis +50, -50 mm

max. speed main spindle 4000 min-1

spindle taper 1 A2-6

C - Axis 0,001 °

spindle bearing diameter 120/85 mm

no. of tools in turret 1 10

shaft cross cut 25 x 25 mm

Shank diameter 50 / 32 mm

turret change time 0,25 s

max. spindle speed driven tools 6000 min-1

rapid power traverse in X-and Z direction 30 m/min

Rapids C - Axes 400 min -1

drive capacity - spindle motor 18.5 kW

power capacity - driven tools 5,5 kW

swing diameter over face slide 660 mm

greates pass round over bed 870 mm

total power requirement 36 kVA

weight of the machine ca. 5,2 t

dimensions of the machine ca. 3,5 x 2,0 x 2,1 m

Accessories

double foot switch

Chip conveyor

high pressure coolant 5 bar

Partscounter

Signal tower 3 farbig / 3 colors

parts catcher

Additional information

High performance CNC - Lathe with Y - axes

- tailstock

- Y-axis for out of the middle boring and milling

- C-axis

- spindle break

- Direct driven spindles

- parts catcher

- 6 toolholder (standard tools) with the machine

- KITAGAWA 8inch 3-jaw chuck

- network (CAPS-Server)

approx. 15.500 hours "machine on", approx. 8.650 hours "spindle on"
