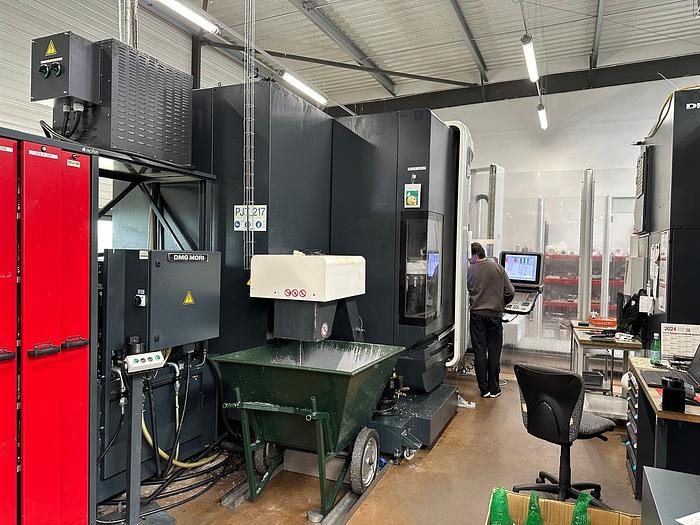

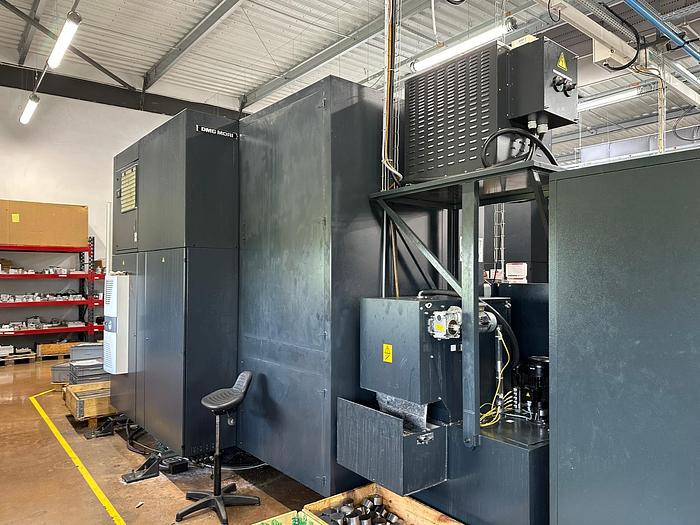

2014 DMG MORI DMU 80 EVO LINEAR

Machine-Details

Stock-No. 1105-04022

Type of machine Machining Center - Universal

Make DMG DECKEL MAHO

Type DMU 80 eVolution LINEAR

Year of manufacture 2014

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin Germany

Delivery time to be agreed

Freight basis ex site

Technical details

x-travel 800 mm

y-travel 650 mm

z-travel 550 mm

control iTNC 530 Heidenhain

distance spindle nose and table 150 - 700 mm

turning speed range - main spindle max. 18.000 min/-1

power capacity - main spindel 35 / 25 kW

max. Torque 130 Nm

tool taper HSK

table surface area 800 x 700 mm

max. table load 600 kg

rotatable C: 360 °

Swivel range B: -5 / -110 °

number of toolpositions 120 pos.

tool taper HSK 63

max. tool diameter 80 mm

max. tool-dia with free toolbox 160 mm

max. tool length 315 mm

max. tool weight 8,0 kg

change-time chip to chip ca. 5,9 sec

feed speeds max. 30.000 mm/min

rapid traverse 80 m/min

total power requirement 50 kW

weight of the machine ca. 12,0 t

dimensions of the machine ca. 4,5 x 4,0 x 2,5 m

Accessories

Documents

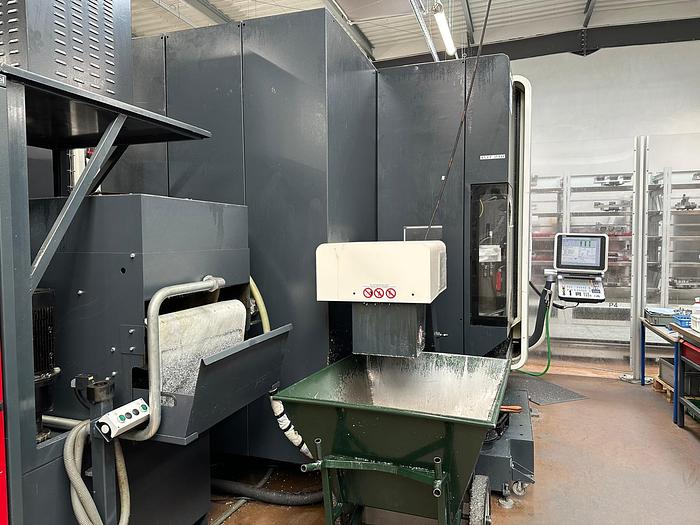

Chip conveyor

Coolantsystem

high pressure coolant

through spindle coolant

elektr. hand wheel

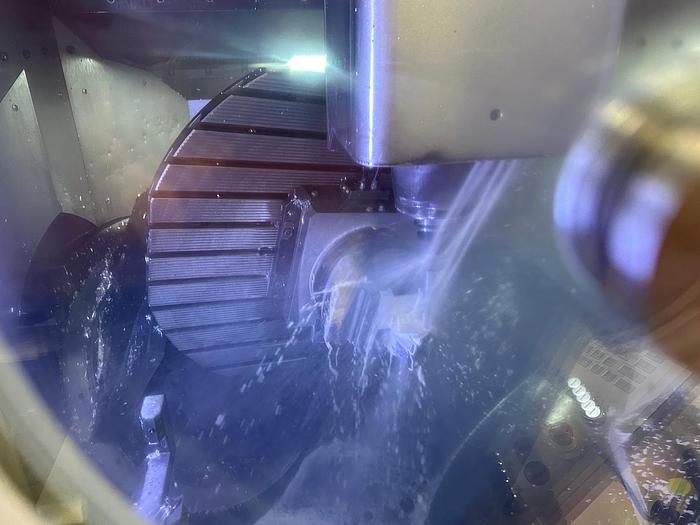

NC-Rotary Swiveling Table

test probe

Additional information

CNC - MachiningCenter Vertical

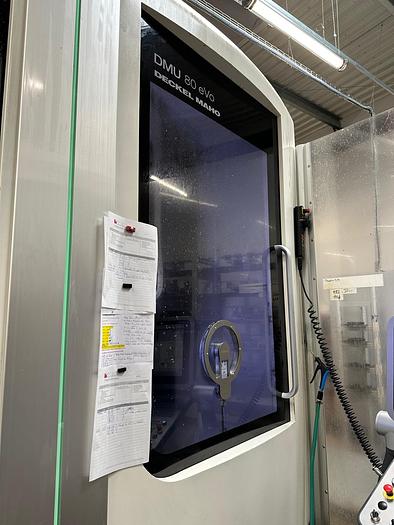

DMG DECKEL MAHO - DMU 80 eVolution LINEAR

CNC HEIDENHAIN ITNC 530 HSCI

- 5 Axis
