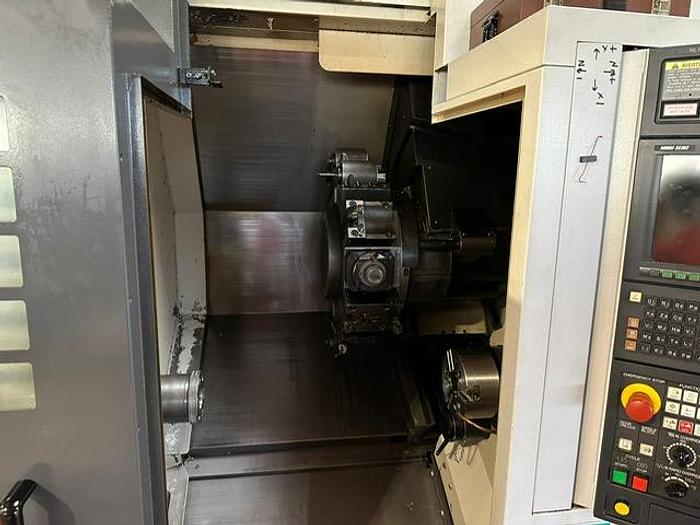

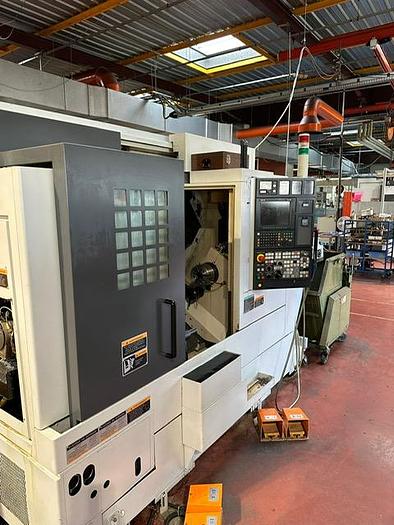

2005 MORI SEIKI NL 1500 SY

Machine-Details

Stock-No. 1105-04004

Type of machine CNC Turning- and Milling Center

Make MORI SEIKI

Type NL 1500 SY

Year of manufacture 2005

Type of control CNC

Storage location FRANKREICH

Country of origin Japan

Delivery time immediately

Freight basis ex Warehouse

Technical details

turning diameter 490 mm

turning length 515 mm

control MSX-850

max. bar capacity 52 mm

travel -x axis 280 mm

travel -z axis 490 mm

max. speed main spindle 6000 min-1

spindle taper 1 A2-6

C - Axis 0,001 °

spindle bearing diameter 110/75 mm

no. of tools in turret 1 12

shaft cross cut 25 x 25 mm

Shank diameter 50 / 32 mm

turret change time 0,25 s

max. spindle speed driven tools 6000 min-1

rapid power traverse in X-and Z direction 30 m/min

Rapids C - Axes 400 min -1

drive capacity - spindle motor 18.5 kW

power capacity - driven tools 5,5 kW

swing diameter over face slide 278 mm

greates pass round over bed 500 mm

total power requirement 36 kVA

weight of the machine ca. 5 t

dimensions of the machine ca. 3,5 x 2,0 x 2,1 m

Accessories

Chip conveyor

Partscounter

Signal tower 3 farbig / 3 colors

parts catcher

Additional information

High performance CNC - Lathe with C - AXIS AND Y AXIS + MOOVING TOOLS

SUP SPINDEL

- C-axis for boring and milling

- spindle break

- Direct driven spindles

- parts catcher

- 2 LIVE toolholder + (standard tools) with the machine

- KITAGAWA 5inch 3-jaw chuck AT SUP SPINDEL

COLLET CHUCK AT MAIN SPINDEL

TOOLS YES MESUR ARMES

- network (CAPS-Server)
