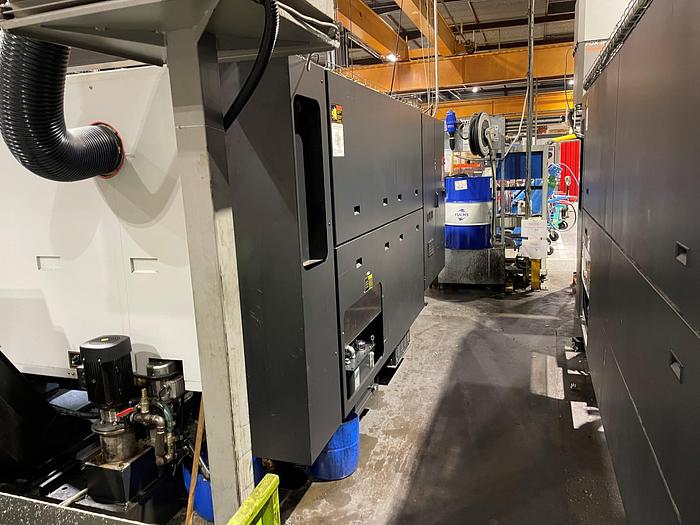

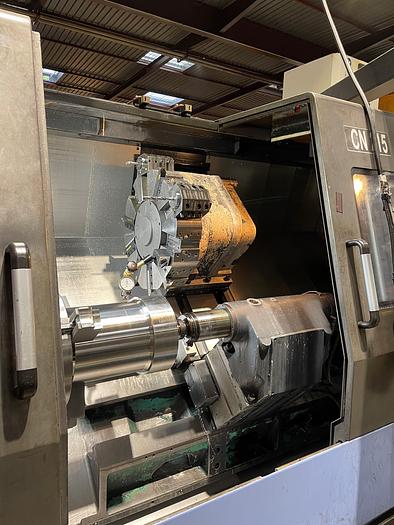

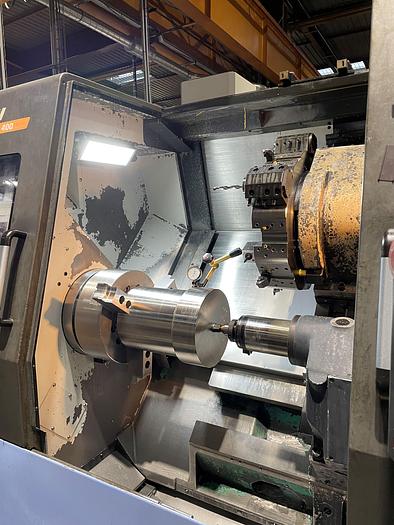

2010 DOOSAN DAEWOO PUMA 400

Machine-Details

Stock-No. 1105-03950

Type of machine CNC Lathe

Make DAEWOO DOOSAN

Type PUMA 400

Year of manufacture 2010

Type of control CNC

Storage location FRANKREICH

Country of origin KOREA

Delivery time to be agreed

Freight basis ex Site

Price

Technical details

turning diameter 700 mm

turning length 1043 mm

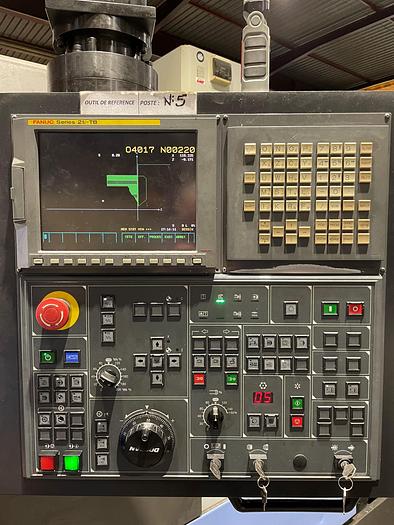

control FANUC 21 IT

turning diameter over bed 550 mm

bar diameter 116 mm

spindle nose A2 11

turning speeds 15~ 2500 U/min

drive capacity - spindle motor 26/22 kW

Torque 125

turret (x-stations) 12

Shank diameter 32 x 32 mm

Drill shank diameter 50 mm

travel -x axis 362 mm

travel -z axis 2505 mm

tail stock JA 120 MM

dia. of quill 120 mm

quill stroke 120 mm

taper MK 6

rapid traverse X-axis 16 m/min

rapid traverse Z-axis 20 m/min

total power requirement 50 kW

Additional information

700 X 1000 LENG

FANUC 21 ITB

CHUCK + CHIP CONVOYER

TAILSTOCK
