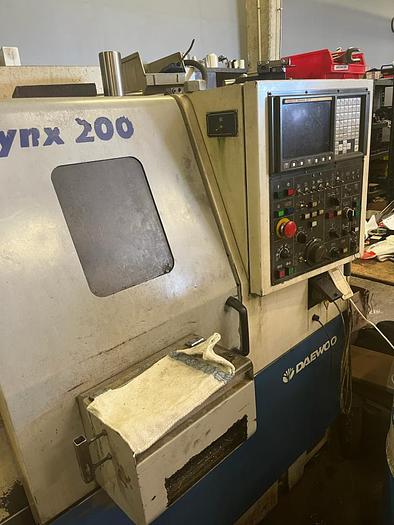

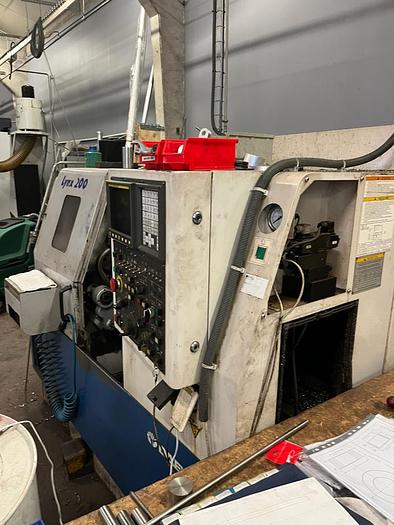

1999 DOOSAN DAEWOO LYNX 200 LC

Machine-Details

Stock-No. 1105-03887

Type of machine CNC Lathe

Make DOOSAN DAEWOO

Type LYNX 200 LC

Year of manufacture 1998

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin KORREA

Delivery time immediately

Freight basis ex site

Price

Technical details

turning diameter 460 mm

turning length 300 mm

control Fanuc 21-T

turning diameter over bed 460 mm

turning dia. over face-slide 280 mm

travel -x axis 160 mm

travel -z axis 330 mm

centre distance 335 mm

rapid traverse X-axis 12 m/min

rapid traverse Z-axis 15 m/min

turning speed range - main spindle 42 - 4.000 U/min

spindle nose A2-6

spindle passage 51 mm

spindle bore 65 mm

spindle cone 1/20

power capacity - main spindel 7.5 kW

no. of tool upper turret 10 .

Shank diameter 32 (rund) mm

Shank diameter 20 (vierkant) mm

tube diameter max. 50 mm

chucking diameter 200 mm

coolant tank 87 l

total power requirement 15 kW

weight of the machine ca. 3,2 t

dimensions of the machine ca. 1,9 x 1,5 x 1.5 m

Accessories

Chip conveyor

Coolantsystem

Additional information

CNC - Lathe

LYNX 200 LC

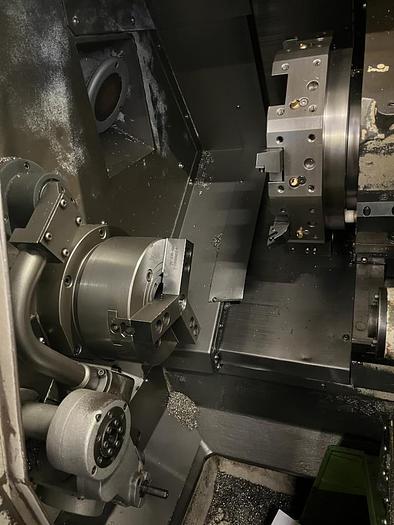

WITH CHUCK+ TURRET+ TAILSTOCK AND CHIP CONVOYER
