2001 MORI SEIKI CL 203/500

Machine-Details

Stock-No. 1105-03872

Type of machine CNC Lathe

Make MORI SEIKI

Type CL203/500

Year of manufacture 2001

Type of control CNC

Storage location HAGUENAU

Country of origin Japan

Delivery time immediately

Freight basis ex site

Technical details

turning diameter 410 mm

turning length 550 mm

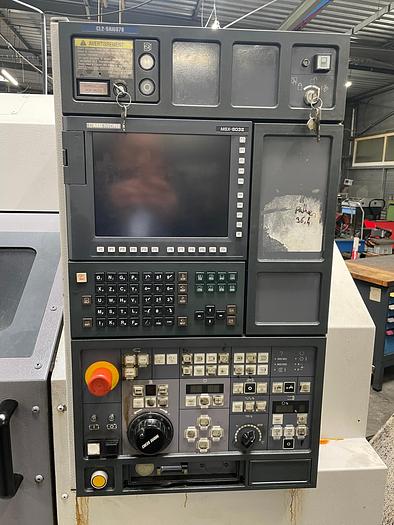

control MSC 803 MITSUBISHI

greates pass round over bed 515 mm

standard turning dia. 250 mm

turning speed range - main spindle 35 - 3.500 min/-1

power capacity - main spindel 7,5 / 11 kW

spindle nose JIS A2-6

spindle bore 73 mm

max. bar capacity 65 mm

spindle diameter in front bearing 110 mm

x-axis 190 (155 + 35) mm

z-axis 370 mm

number of toolpositions 10 pos.

Shank diameter 25 mm

Drill shank diameter 40 mm

change time 0,6 sec

rapid traverse 30 m/min

Tipp feed x/z: 0 - 1.260 mm/min

total power requirement 19 kVA

weight of the machine ca. 3 t

dimensions of the machine ca. 3,0 x 2,5 x 2,5 m

Accessories

Documents

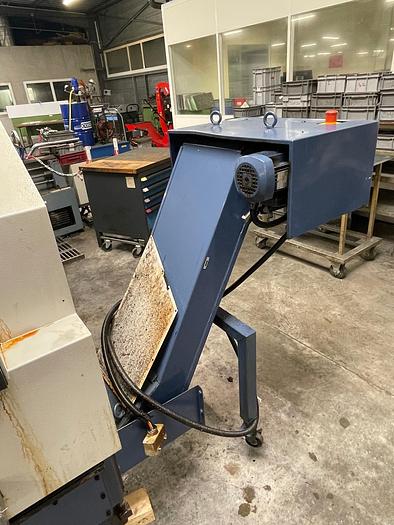

Chip conveyor

tool setter

Coolantsystem

Signal-Light

hydraulic system

Three Jaw Chuck Kitagawa

collet chuck

parts catcher

bar feeder interface

Additional information

CNC - Lathe

MORI SEIKI - CL 20/ 500

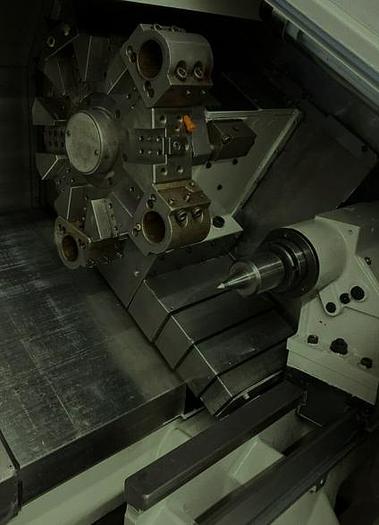

WITH TURRET CHUCK TAILSTOCK

AND CHIP CONVOYER

CNC MORIS MSC 803
