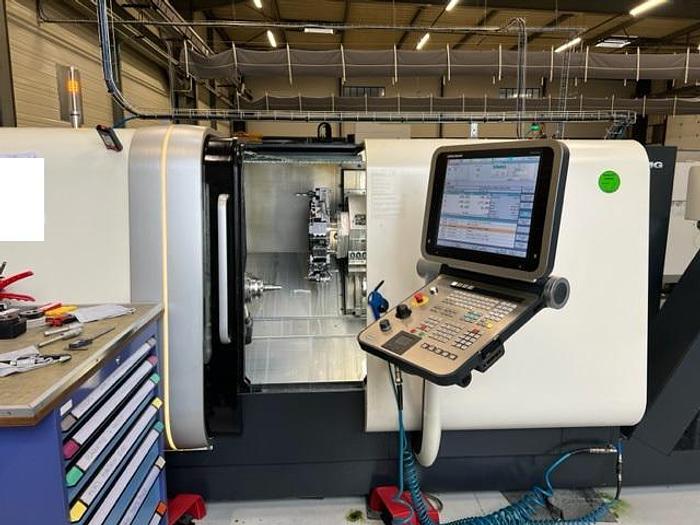

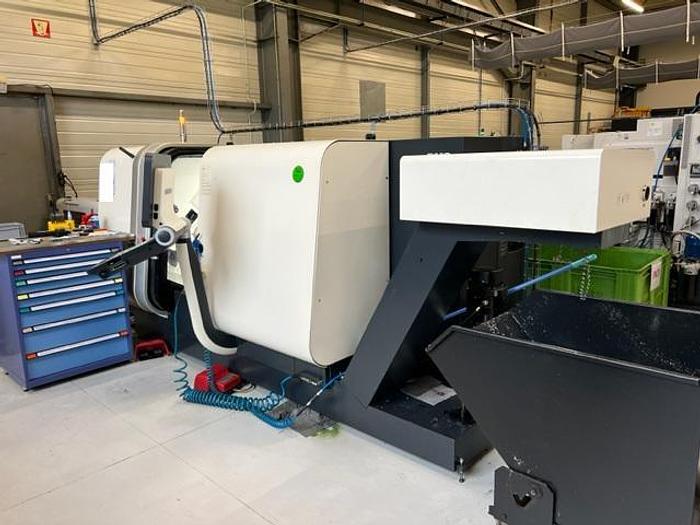

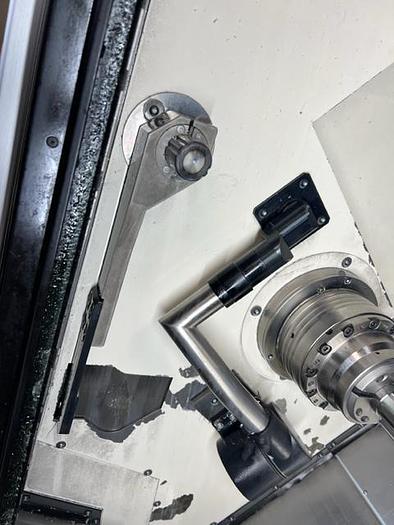

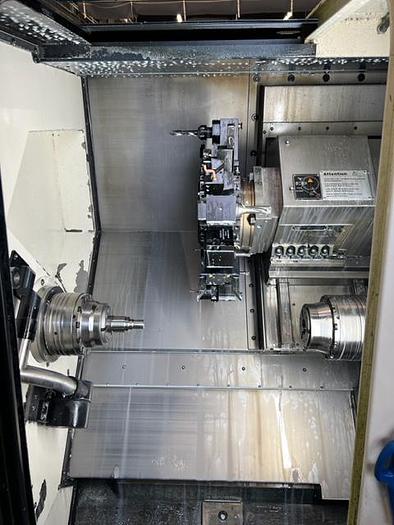

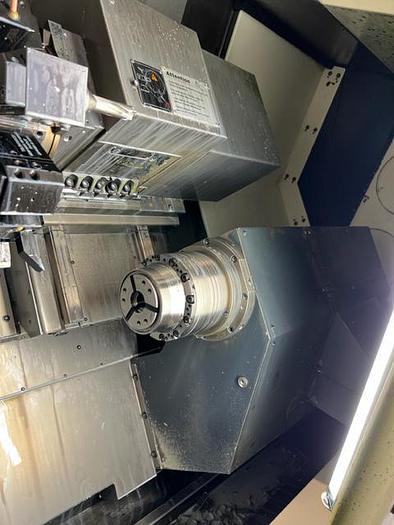

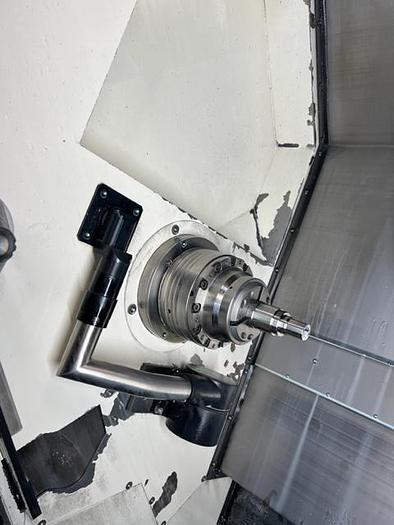

2011 DECKEL MAHO DMG ctx alpha 500 v 6

Machine-Details

Stock-No.1105-03868Type of machineCNC LatheMakeDMG GILDEMEISTERTypeCTX ALPHA 500 V6

Year of manufacture2011Type of controlCNC

Storage locationHAGUENAUCountry of origingermanyDelivery timeIMMEDIATELYFreight basisex sitePriceon request

Technical details

swing diamete r500 mm swing diameter above cross guideway200 mm

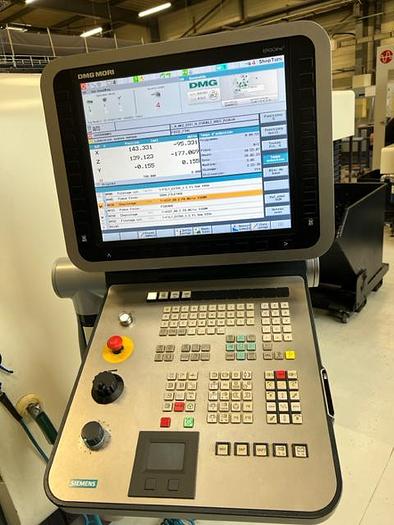

controlSIEMENS 840 Dx-axis190 mmz-axis525 mmpower capacity - main spindel20/15 kW turning speeds 20 - 6000 U/minTorque127/95 Nmspindle head140H5Bar feed 52 mm spindle diameter in front bearing100 mmtool numbers12driven tool (option)12Shank diameter30 mmpower capacity - milling spindle5.4 kWTorque18 Nmtool spindle speed range5000 min/-1Clamping diameter milling tools25 mmtailstock travel370 mm centersMK 4tailstock force600 mmrapid traverse ( X / Y / Z )30 / 22- / 30 m/minweight of the machine ca.5 t dimensions of the machine ca.3,9 x 2 x 1,7 m

Accessories

DocumentsCoolantsystemtool holdersdriven tools4tool setting

Gildemeister CTX ALPHA 500

cnc lathe

WITH C AND Y AXIS+ sup spindel

- milling tools

CHIP CONVOYER
