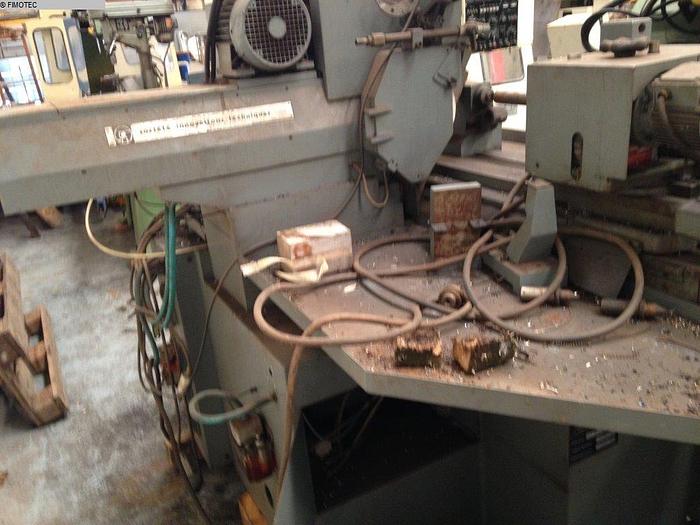

1983 SIT U 700
1983 SIT U 700
orCall 330388720247
Description
* internal grinding device * internal grinding spindle * grinding stone for internal grinding spindle * closed tailstock *grinding wheels * tailstock * wet grinding device with filter * manual
Specifications
| Manufacturer | SIT |
| Model | U 700 |
| Year | 1983 |
| Condition | Used |
| Stock Number | 1105-02404 |
| Controls | konventionell |
| Country of origin | france |
| Delivery time | immediately |
| Delivery terms | ex stock |
| Grinding diameter | 300 mm |
| Grinding length | 700 mm |
| Centre height | 175 mm |
| Table longitudinal travel | 500 mm |
| Feed speed | 0,05 - 5 m/min. |
| Swival range +/- | 9 Grad |
| Grinding wheel size | 200 x 50 x 127 mm |
| Grinding wheel motor | 4,0 kW |
| Hydraulic motor | 1,5 kW |
| Internal grinding motor | 1,1 kW |
| Workpiece-spindlehead motor | 0,37 kW |
| Workpiece spindle stepless | 44 - 400 U/min |
| Spindle cone | MK 4 |
| Workpiece spindle swivable +/- | 90/5 ° |
| Max. workpiece weight between centres | 120 kg |
| Tailstock quill taper mt | 4 |
| Quill stroke | 28 mm |
| Internal grinding diameter | 15 - 150 mm |
| Grinding depth | 122 mm |
| Grinding spindle speed | 13700 / 18100 U/min |
| Total power requirement | 7,14 kW |
| Weight of the machine ca. | 2.5 t |
| Dimensions of the machine ca. | 3 x 1,67 x 1,5 m |
