1995 NAKAMURA TW 20 MMY
1995 NAKAMURA TW 20 MMY
orCall 330388720247
Description

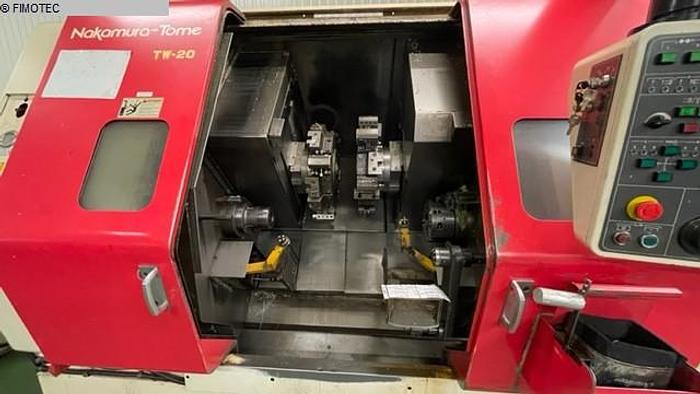

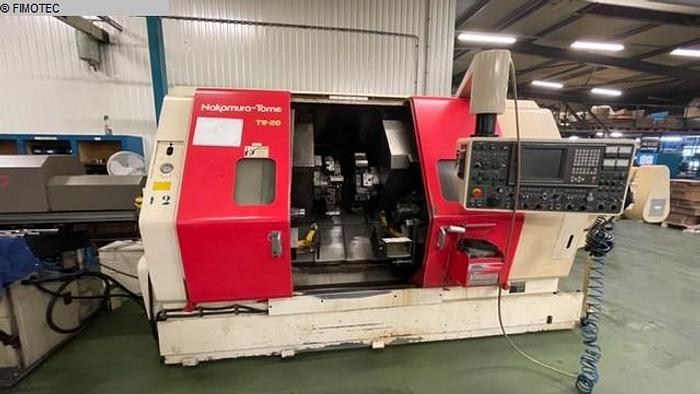

CNC - Turning- and Millingcenter NAKAMURA - TW 20 MM - Main- and Subspindle - two turrets
Specifications
| Manufacturer | NAKAMURA |
| Model | TW 20 MMY |
| Year | 1995 |
| Condition | Used |
| Stock Number | 1105-03633 |

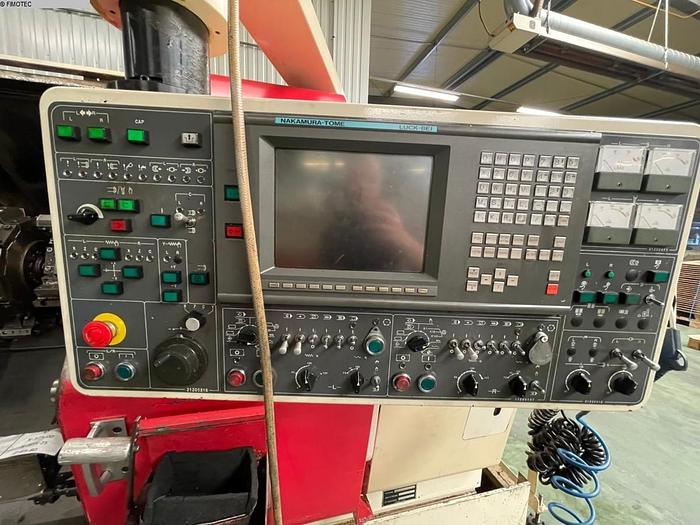

| Controls | CNC, Fanuc 16 TT |
| Country of origin | Japan |
| Delivery time | IMMEDIATELY |
| Delivery terms | ex site |
| Turning diameter | max. 165 mm |
| Turning length | 100 - 340 mm |
| Swing dia. over bed | 220 mm |
| Turning speed range - main spindle | 50 - 5.000 min/-1 |
| Power capacity - main spindel | 5,5 / 7,5 kW |
| Spindle bearing diameter | 80 mm |

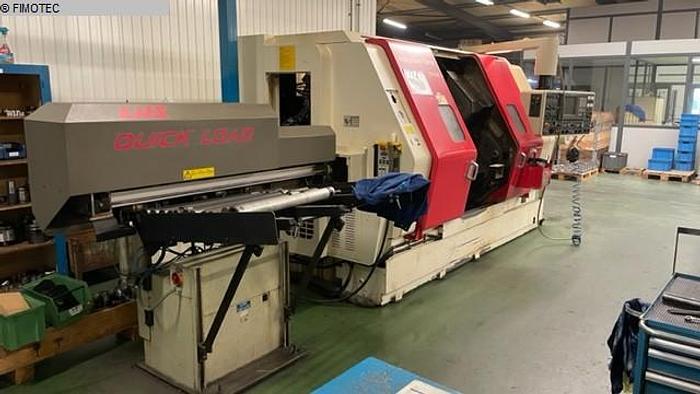

| Bar feed | 42 mm |
| Chucking diameter | max. 165 mm |
| C-axis | Y AXIS |
| Spindle speed range subspindle | 50 - 5.000 min/-1 |
| Power capacity - sub spindle | 3,7 / 5,5 kW |
| Number of turret | 2 pos. |
| Number of toolpositions | 2x 16 pos. |
| Number of driven toolspositions | 2x 16 pos. |
| Shank diameter | 20 x 20 mm |
| Drill shank diameter | 25 mm |
| Power capacity - driven tool pos. | 15 kW |
| Spindle speed - driven tool pos. | 180 - 3.600 min -1 |
| X-travel | 1/2: 175 mm |
| Z-travel | 1/2: 240 / 680 mm |
| Rapid traverse x-axis | 12 m/min |
| Rapid traverse z-axis | 24 m/min |
| Total power requirement | 41 kVA |
| Weight of the machine ca. | 5,5 t |
| Dimensions of the machine ca. | 3,5 x 2,8 x 2,0 m |
| Turret | 2x |
