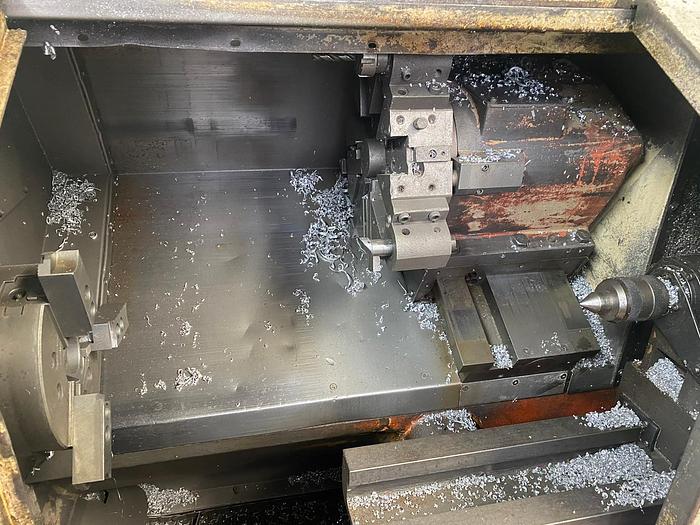

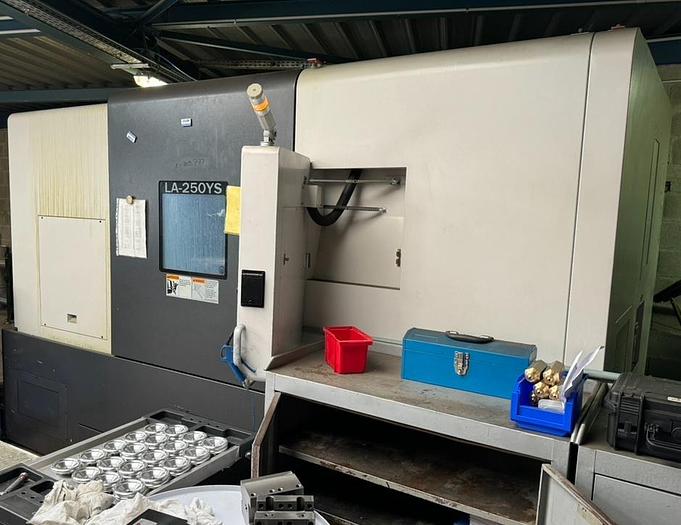

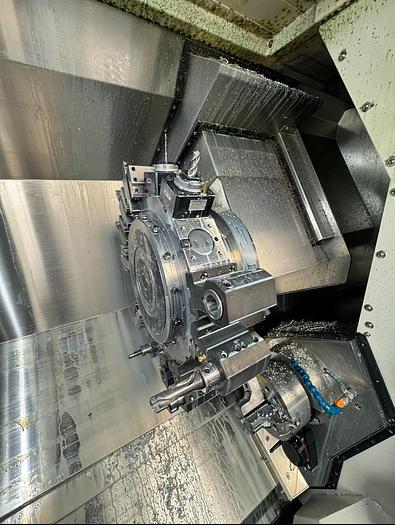

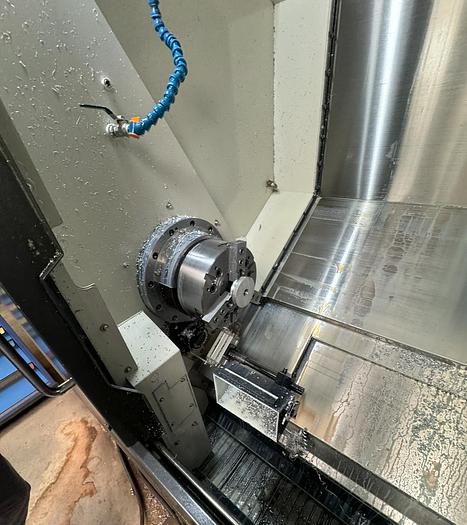

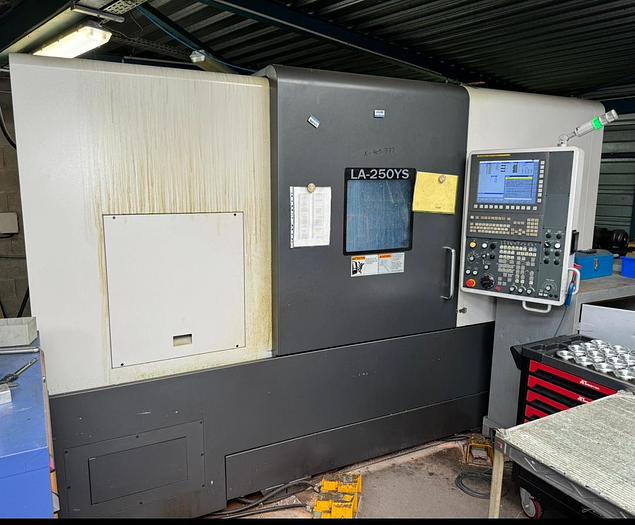

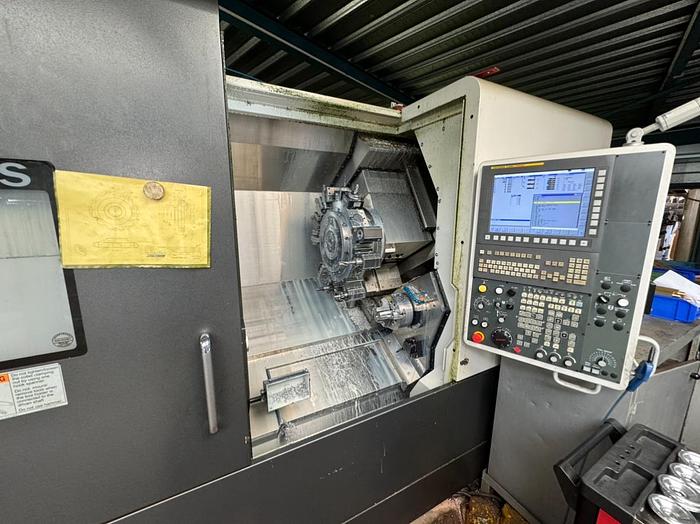

2017 TAKISAWA LA 250 YS

MAchine-Details

Stock-No. 1105-03991

Type of machine CNC Turning- and Milling Center

Make TAKISAWA

Type LA 250 YS

Year of manufacture 2017

Type of control CNC

Storage location HAGUENAU FRANCE

Country of origin taiwan

Delivery time IMMEDIATELY

Freight basis EX WORK

Technical details

turning diameter 370 mm

turning length 737 mm

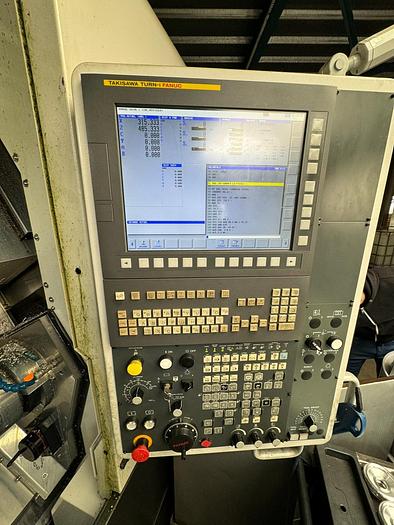

control FANUC 31 ITB

max. bar capacity 75 mm

travel -y axis +50, -50 mm

max. speed main spindle 3500 min-1

spindle taper 1 A2-6

C - Axis JA

no. of tools in turret 1 12

drive capacity - spindle motor 26 kW

power capacity - driven tools 6.7 kW

total power requirement 40 kVA

weight of the machine ca. 7 t

dimensions of the machine ca. 53.5 X 2.1 X 2 m

Accessories

Chip conveyor ja / yes

Additional information

High Performance CNC Turning- and Milling Center with Y - Axis

Chipconveyer, Counterspindle, driven tools,

Y - Axis for eccentric Drilling and Milling works + - 60 mm

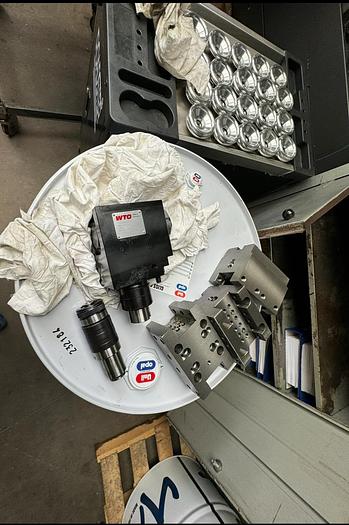

C-Axis, screw brake, partcatcher, 3 driven tools as accessories, 10 static

holder as accessories, , Toolsystem with one collet each for

Main - and Subspindle, Tool Eye Measurement, Part catcher and part conveyer

WHITOUT BAR LOADER
