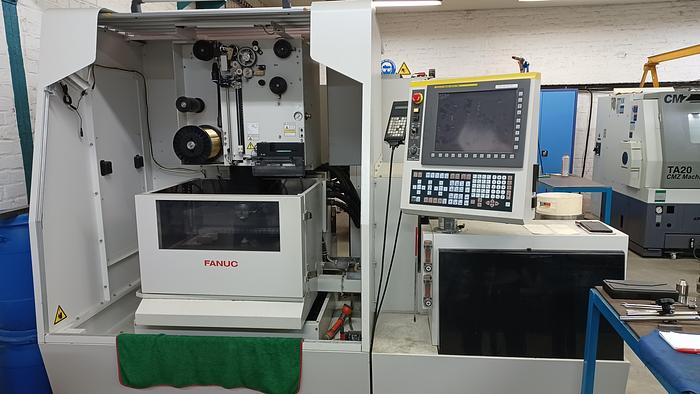

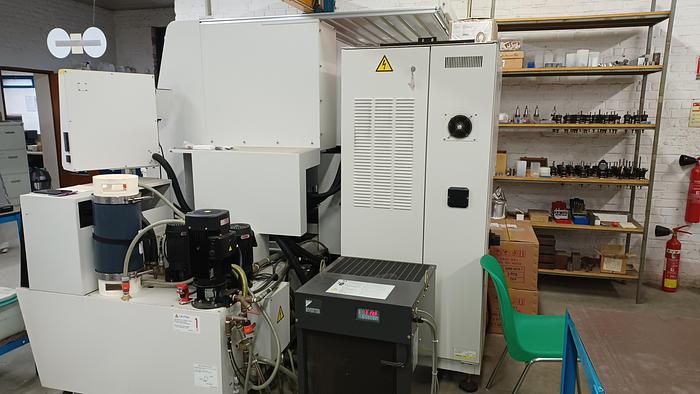

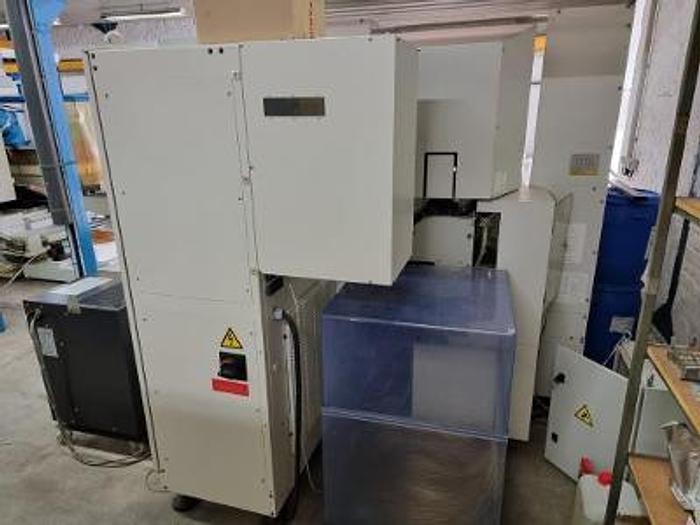

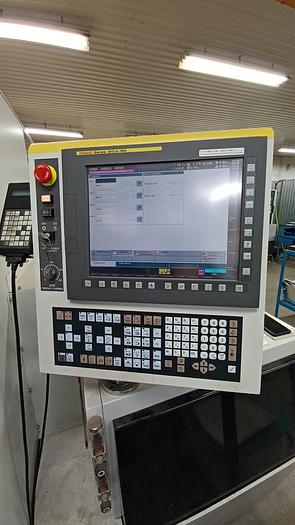

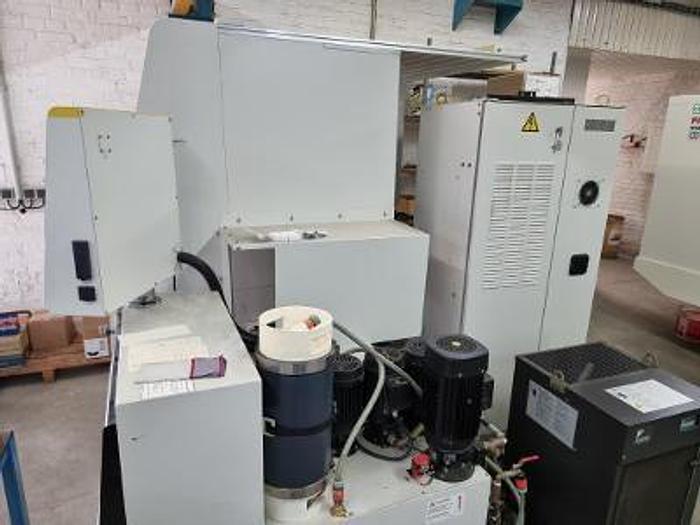

2008 fanuc robodrill alpha oid

Machine-Details

Stock-No. 1105-03942

Type of machine Wire Eroding Machine

Make FANUC

Type Robocut Alpha oid

Year of manufacture 2008

Type of control CNC

Storage location FRANKREICH

Country of origin JAPAN

Delivery time to be agreed

Freight basis ex site

Technical details

table length 700 mm

table width 400 mm

control fanuc 310 s wa

x-axis 520 mm

y-axis 370 mm

U-axis +/- 60 mm

V-axis +/- 60 mm

Konikangle (100mm) +/- 30 °

z-axis 410 mm

max. workpiece sizes 600 x 420 mm

max. workpiece height 400 mm

max. workpiece weight 400 kg

rapid traverse 0,9 m/min

interval size of the actuator 0,001 mm

wire dia. 0,1 - 0,30 mm

wire speed 0 - 15 m/min

wire clamping 200 - 2.500 g

total power requirement ~ 14 kVA

weight of the machine ca. 2,5 t

dimensions of the machine ca. 3,2 x 2,5 x 2,1 m

Accessories

Documents

elektr. hand wheel
